Deborah R. Fowler
Nodes | Polyextrude
Posted: May 21 2021Updated: Dec 18 2023 - adding Redshift example
Tags: polyextrude, zscale, pointwrangle, chramp, Redshift, normals
Polyextrude is great for extruding primitives, add a facet node and zscale and you have control over variation of extrusions.

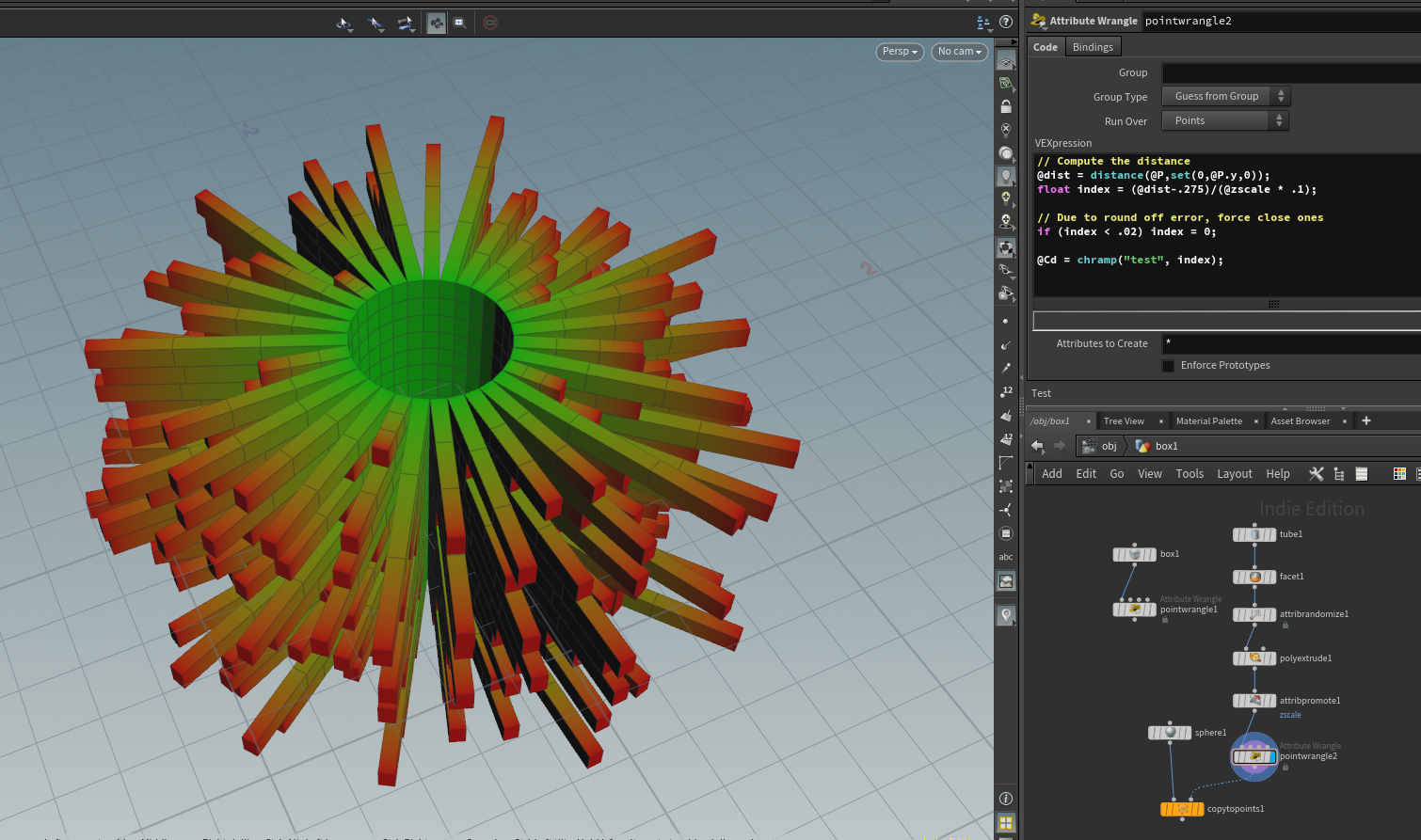

I was asked how to assign a point color that would ramp and I created a point wrangle node to assign based on the distance. This was a good reminder about round-off / comparisons. Try this and comment out the tolerance value and you will get some odd red points on the inner tube. Good debugging stills were employed to track it down - thanks to the geometry spreadsheet.
Hip file available rampZscale.hiplc - created in Houdini18.5.532

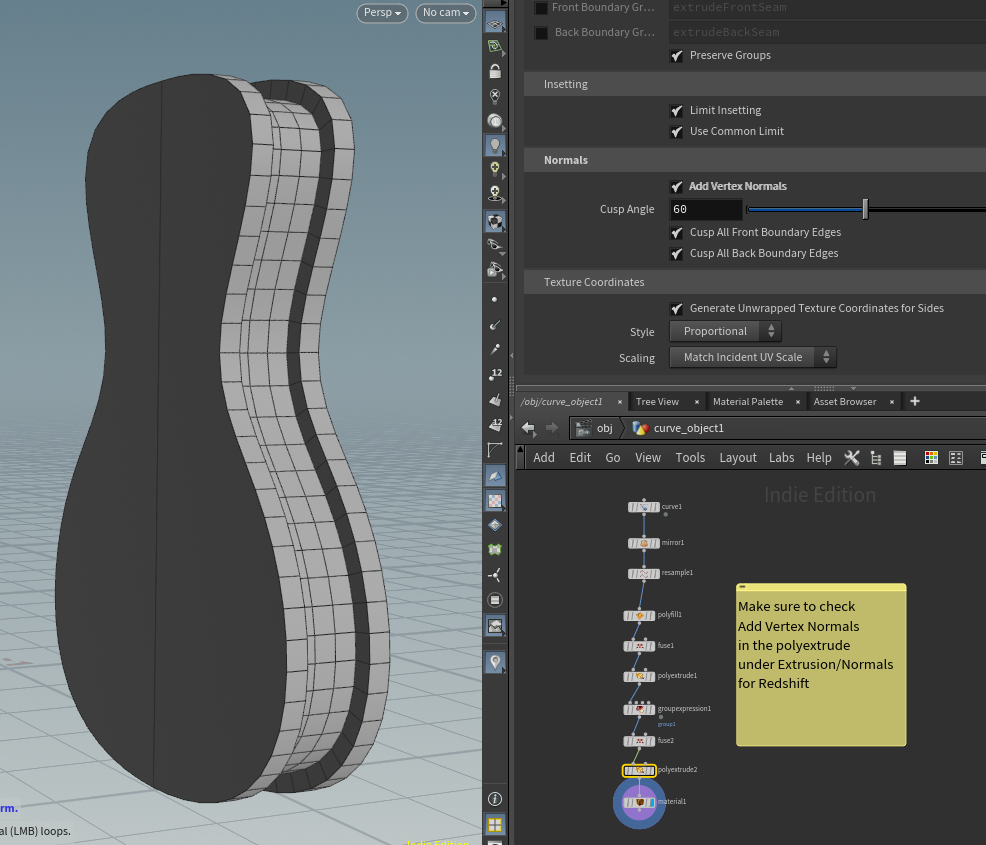

Hip file available showing Add Vertex normal for Redshift rendering: created in Houdini 19.5.303 polyExtrudeRedshift.hiplc
