Deborah R. Fowler
Wrangle Node
Example - Create N Group
Posted on Oct 13 2019
Example file here: hipnc available
This stems from a student question about creating points within a point wrangle and assigning certain ones to a group.

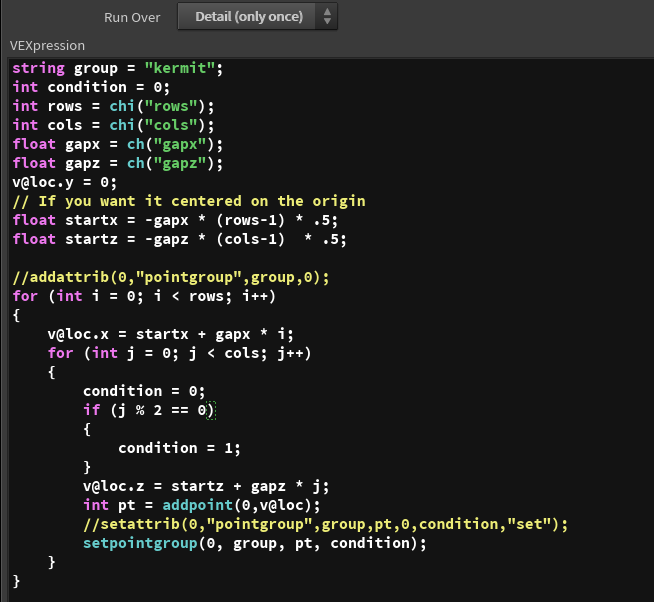

There are two methods, one to use setpointgroup and the other to addattrib and setattrib which are commented out.
Note that when adding point attributes it is important to indicate the type with the default value. For example if you set pscale to 1 instead of 1.0 you will not be able to assign a floating point value.

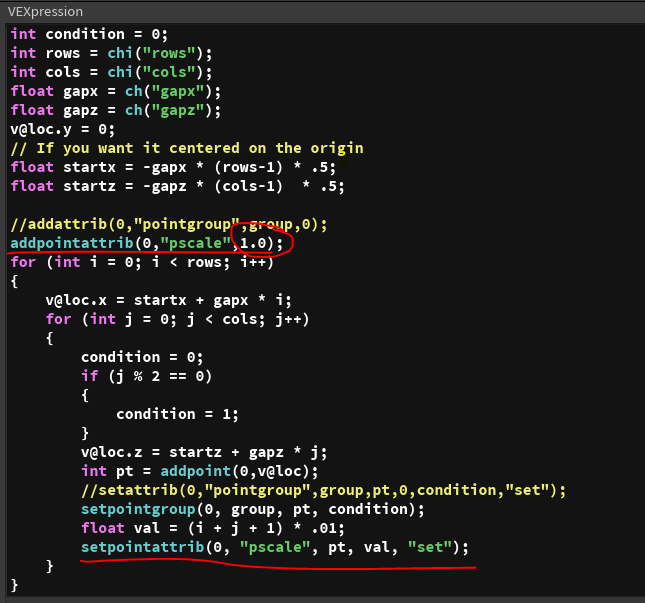

I have highlighted the pscale attribute being added below.
